National Optical 106-LED Overview

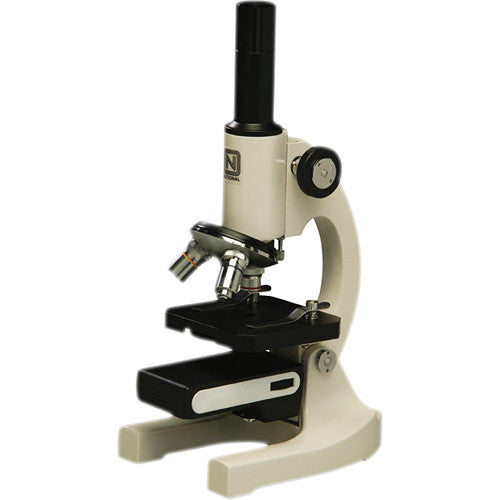

The 106-LED Compound Microscope from National Optical is a three-objective intro-level microscope designed for elementary school students. Achromatic eyepiece and objectives minimize image distortions and deliver consistent images on all three magnification settings. The user-friendly microscope design has dual coarse-focusing knobs and features that are intended to prevent mishandling by novice users. National Optical engineered this vertical compound microscope to be easy to use, durable, and feature-rich enough to help transition older elementary school students to more sophisticated microscopes.

Optical System
  • 10x eyepiece with revolving pointer
  • 4x,10x,40xR achromatic and color-coded objectives
  • 40x,100x, 400x magnification
  • Rotating objective turret with click stops
Focusing
  • Dual coarse focusing knobs
  • Rack-and-pinion focus system
  • Slip clutch prevents over-turning
  • Tension adjustment prevents focus drift
  • Rack stop prevents damage to slides and protects lenses
Lighting
  • LED illuminator (20 watt equivalent)
  • On/Off with rheostat switch
  • 6-hole disc diaphragm
  • Cordless LED illuminator; powered by NiMH batteries
Construction Details
  • 3.5x3.25" (8.8x8.2cm) stage with locked-on spring-activated clips
  • Cast metal body with inclination joint
  • Grey enamel finish
  • 11.75" (29.5cm) height
  • 3.7lb (1.7kg) weight
